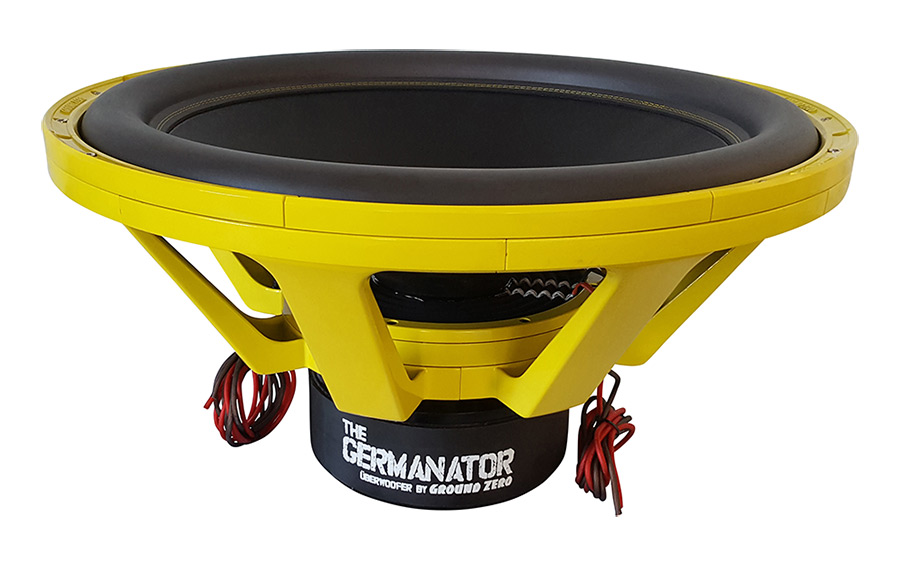

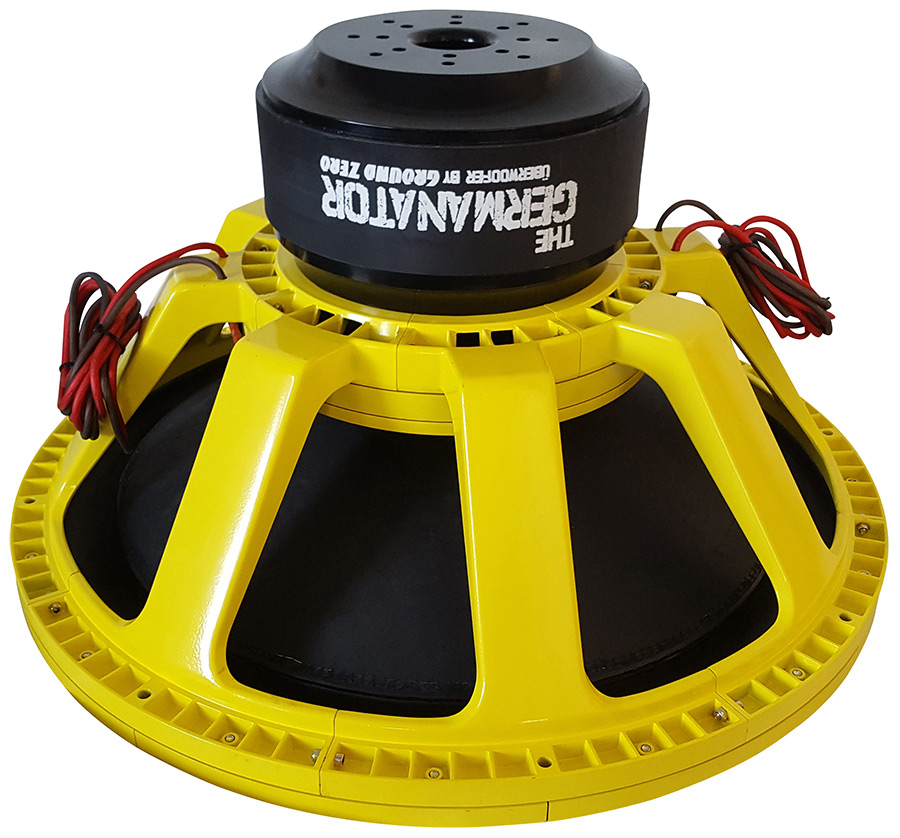

Ground Zero The GERMANATOR

• - High power 33” Subwoofer
• - Klippel® optimized
• - Fiber reinforced paper cone
• - 6” flat wire voice coil
• - High-Roll sandwich surround
• - Progressive 5-layer spider
• - 10 mm² / 7 AWG connection cable with 4.92 ft length
• - Massive aluminum cast basket
• Diameter 84 cm / 33"
• Mounting diameter 771 mm / 30.35"
• Mounting depth 420 mm / 16.54"
• Voice coil 160 mm Flachdraht / 6” flat wire
• Fiber reinforced paper cone
• Power Handling 15000 WRMS
• Impedance 2 x 1 Ohm
• SPL 94 dB
• Xmax 70mm
• Fs 24.42 Hz
• Qts 0.513
• Vas 534 liter
• Fraktvekt: 145kg
• Datablad/kasseforslag PDF
