| Varenr : |
15252 |
|
| Enhet : |
stk |
|
| Listepris : |
790.00 |
|
| Antall Pakke : |
stk |
|
| Vekt : |
.0000 Kg |
|

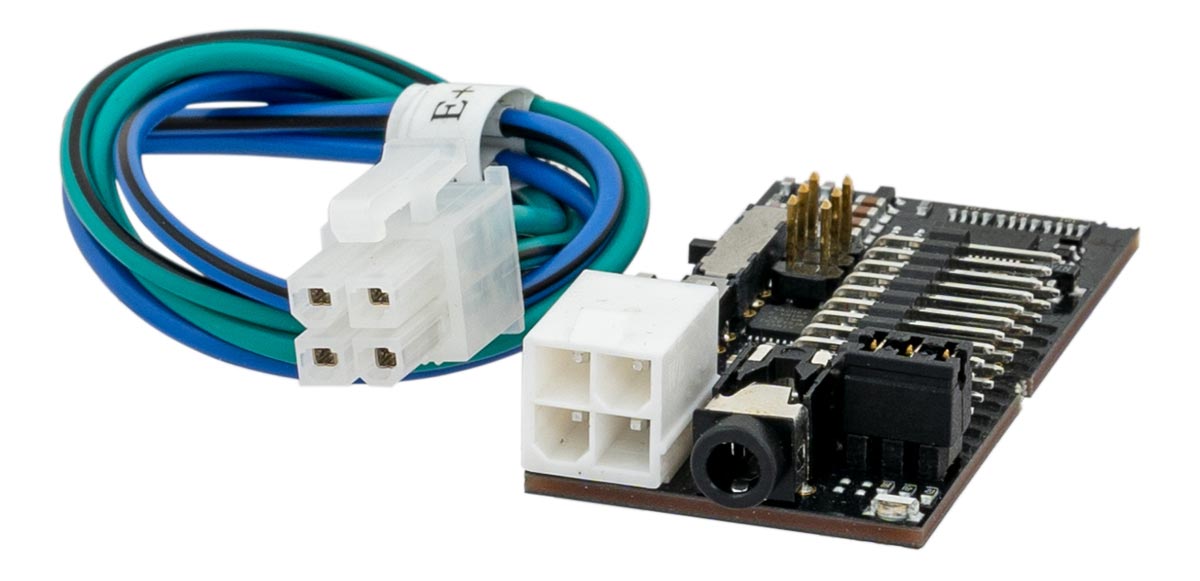

- The MATCH Extension Card ANALOG IN extends MATCH products with two additional analog input channels. For example, the module allows to
-
- provide MATCH DSP amplifiers with a lowlevel signal
- upgrade OEM premium sound systems which require additional highlevel inputs
- connect additional analog signal sources such as a TV or smartphone
-
- Of course, the highlevel input provides our proprietary ADEP.3-circuit, the Auto Remote function as well as an adjustable input sensitivity from 1.5 to 30 Volts. Just as the highlevel input the 3.5 mm lowlevel stereo input offers an adjustable input sensitivity. The adjustment range is from 0.5 to 8 Volts. The module will be delivered with a device-specific side panel.
-
- Extends the amplifier by two additional analog input channels
- Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts
- Lowlevel stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts
- Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source
- Device-specific side panel included in delivery
-
- Input voltage highlevel 1.5 - 30 Volts (adjustable)
- Input voltage lowlevel 0.5 - 8 Volts (adjustable)
- Lowlevel input 3.5 mm jack
- Additional features ADEP.3, Auto Remote function
-
- https://www.audiotec-fischer.de/media/pdf/e0/85/51/BA_Extension-Card_ANALOG-IN_05-03-20_Web.pdf
