| Varenr : |
15266 |
|
| Enhet : |
stk |
|
| Listepris : |
890.00 |
|
| Antall Pakke : |
stk |
|
| Vekt : |
.0000 Kg |
|
- FØRPRIS 1290,-
-
- You did not find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your "personalized" version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our "standard" subwoofers.
-

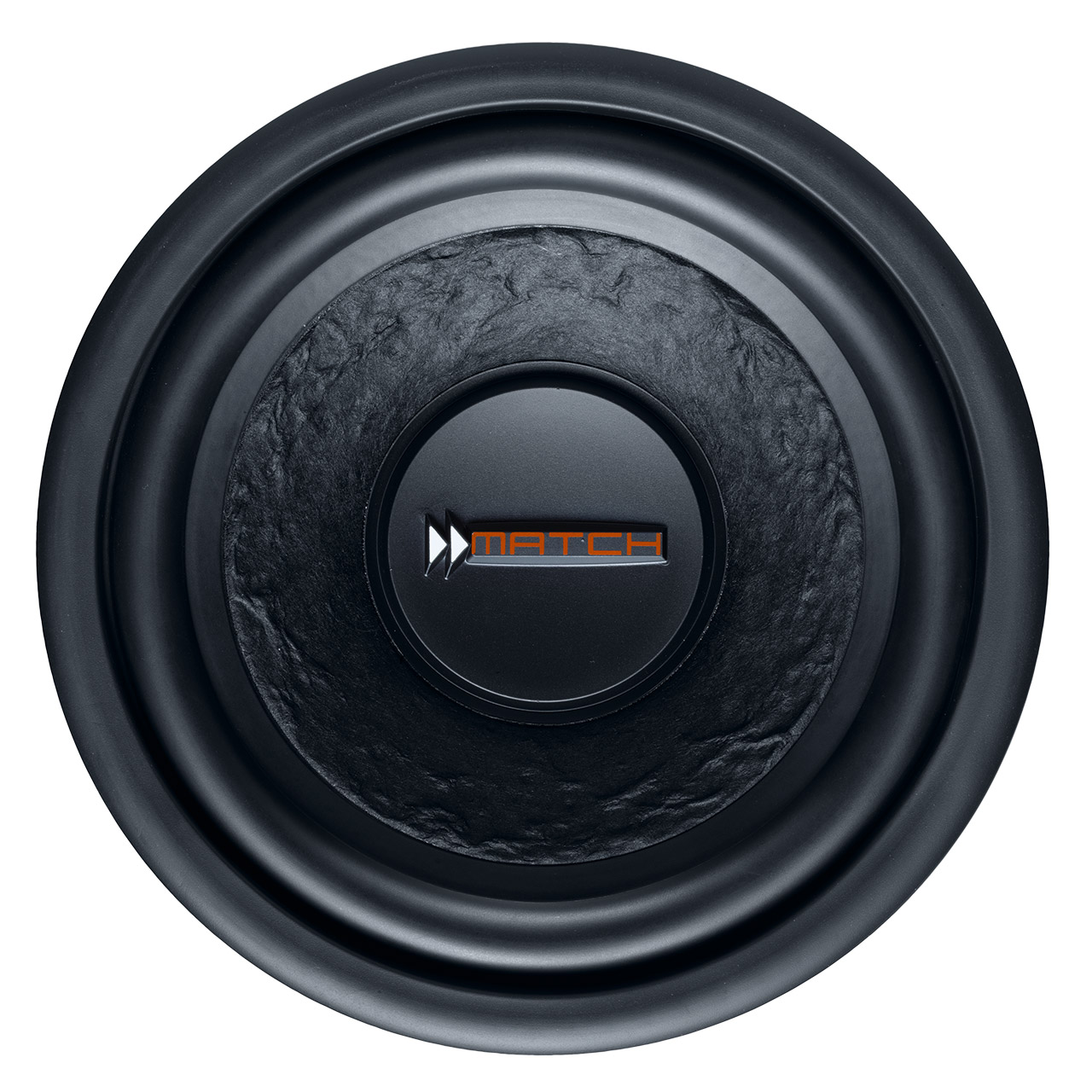

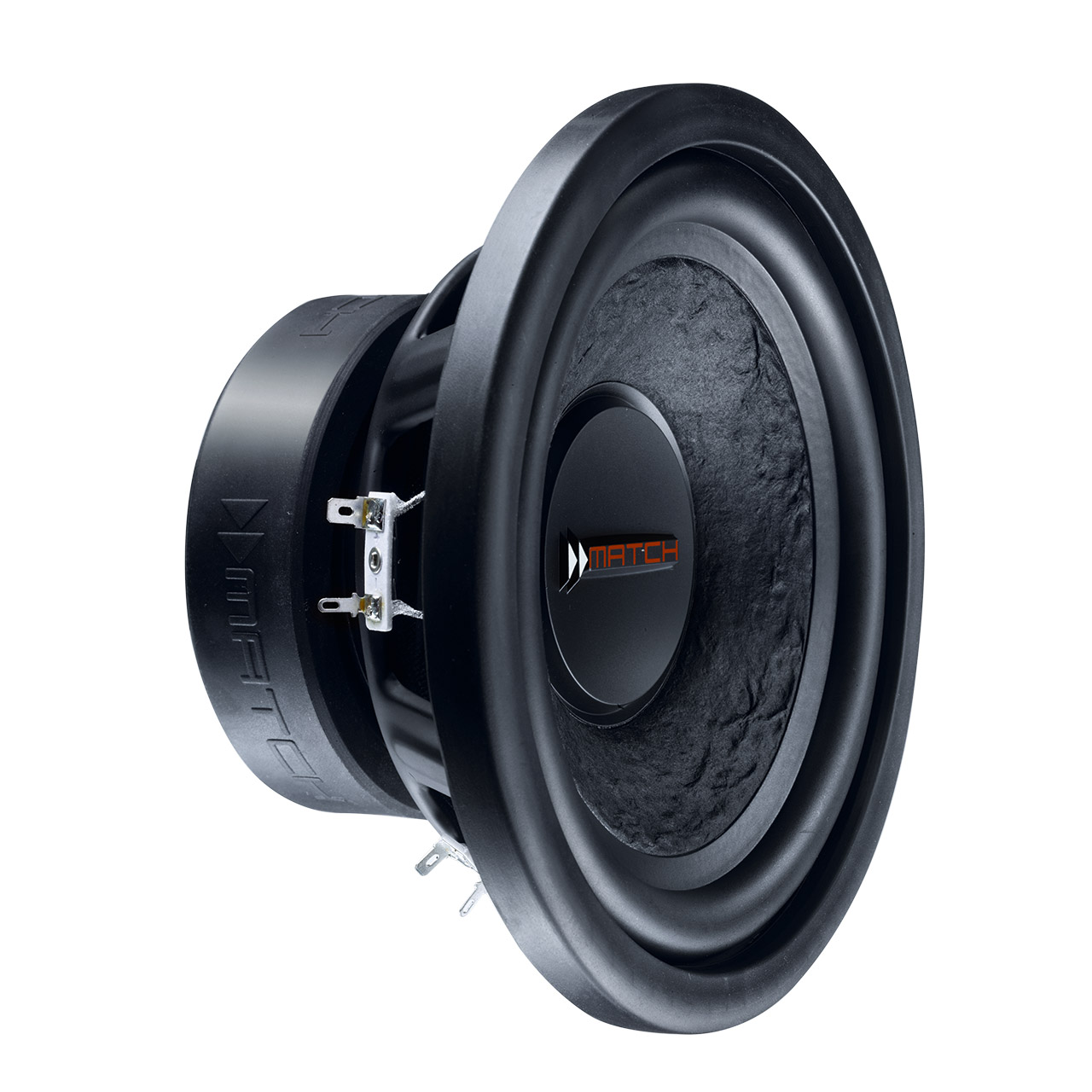

- 8” / 200 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
- Extremely stiff hand-scooped paper cone for maximum sound pressure
- Double ventilated voice-coil for minimum compression effects
- Powerful magnet for compact-sized vented enclosures
- Optimized for the perfect interaction with MATCH Plug & Play amplifiers

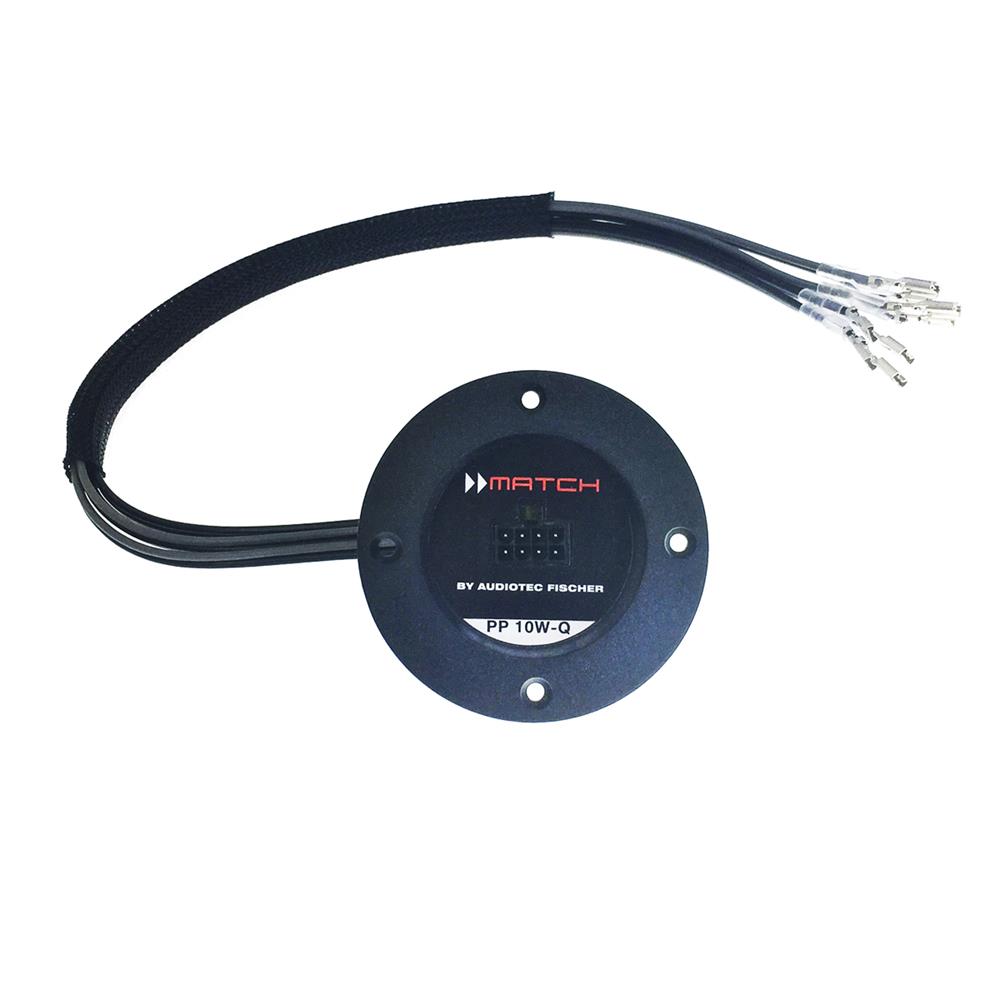

- Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
-
- Power RMS / max. P 200 / 400 Watts
- Impedance Z 4 x 3 Ohm
- Resonance frequency Fs 37 Hz
- Total Q factor Qts 0.51
- Equivalent air volume Vas 23 L
- Force factor B*I 7.5 Tm
- Efficiency 1 W / 1 m SPL 87 dB
- Cone area Sd 222 cm²
- Moving mass Mms 53 g
- Voice coil diameter ø 50.8 mm
- Outer diameter ø 212 mm
- Installation diameter ø 183 mm
- Installation depth 105 mm
-
- Vented box Net volume 10 L
- Port diameter ø 60 mm
- Port area 25 cm²
- Port length 25 cm
- Port tuning frequency Fb 47 Hz
- Lower limiting frequency (-3dB) 45 Hz
Alle priser ink.mva
|
