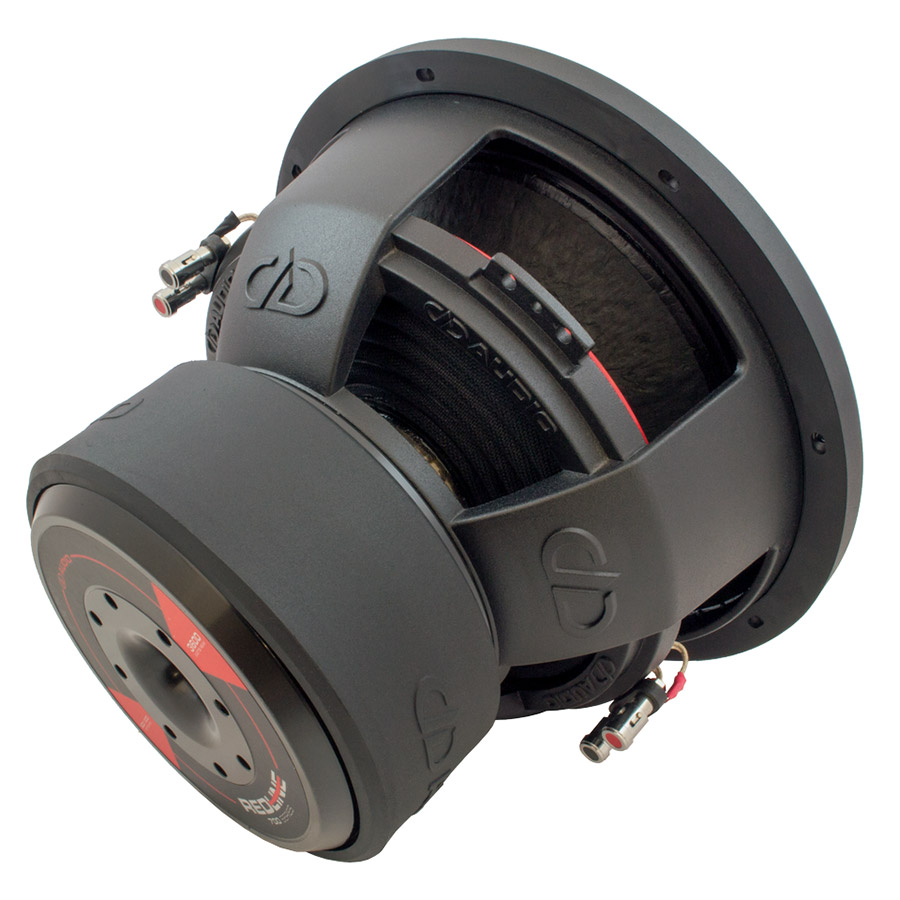

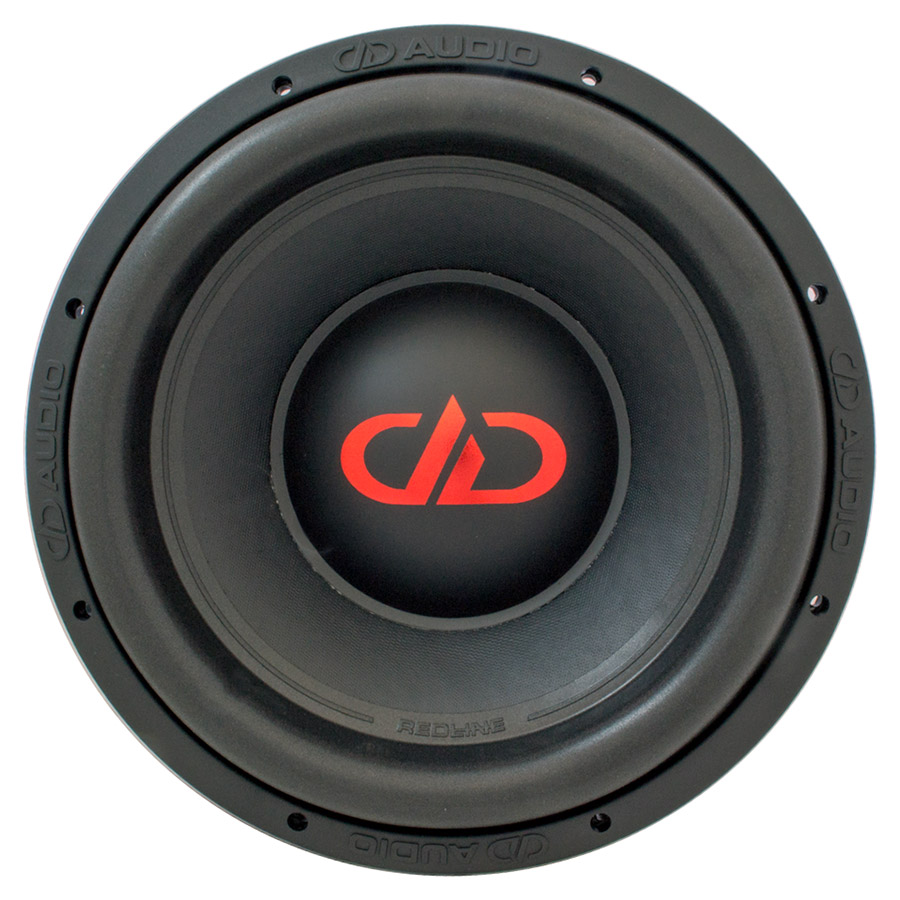

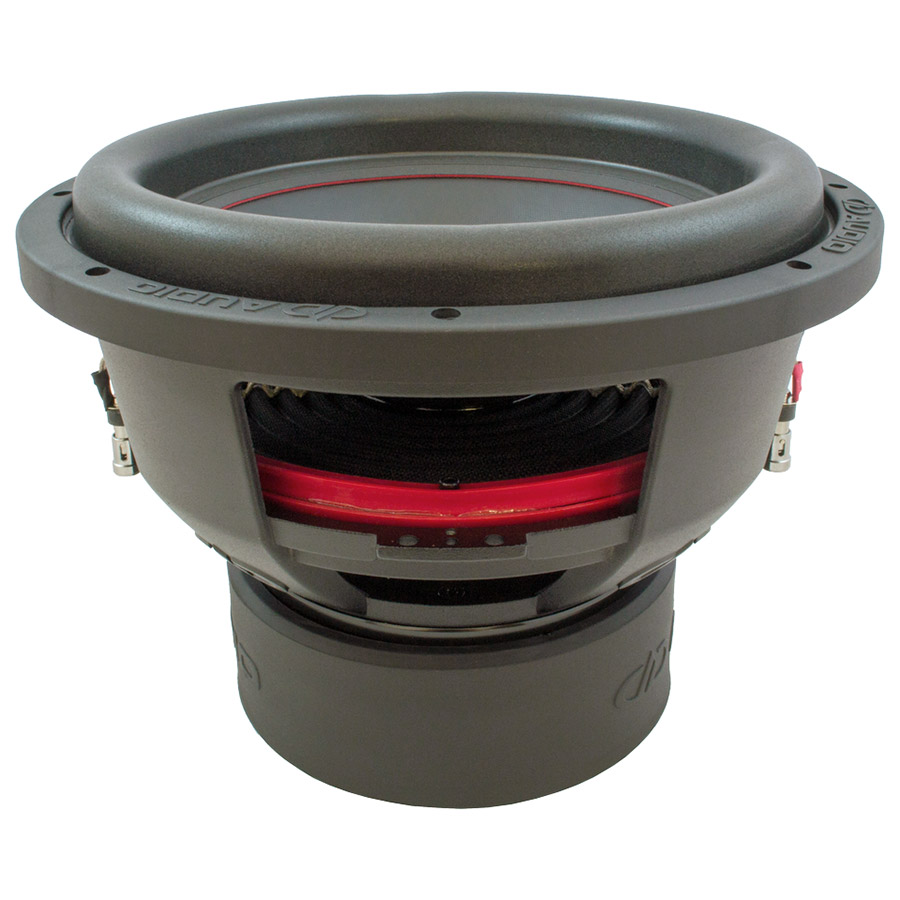

DD Audio 712d D4

• 30 cm / 12" bass
• Power handling RMS: 600 til 1200 Watt (Peak Power 3600)
• Impedanse: 2 x 4 ohm
• Svingspole: 75 mm / 3"
• Slaglengde, Xmax. 16 mm (32mm peak to peak)
• Monteringsdybde 21,75 cm
• Anbefalt i portet kasse fra 49 til 78 liter
• Thiele-Small parameters:
• Fs 28.26 [Hz]
• BL 31.04 [N/A]
• Qms 4.344
• Qes 0.4823
• Qts 0.4341
• Vas 39.64 [liters]
• dBSPL 84.58 [1W/1m]
• EROM surround
• High-temp, 3.0”, voice coil
• Triple layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back plate coil gap venting
• Extended pole piece
• DD cast basket
