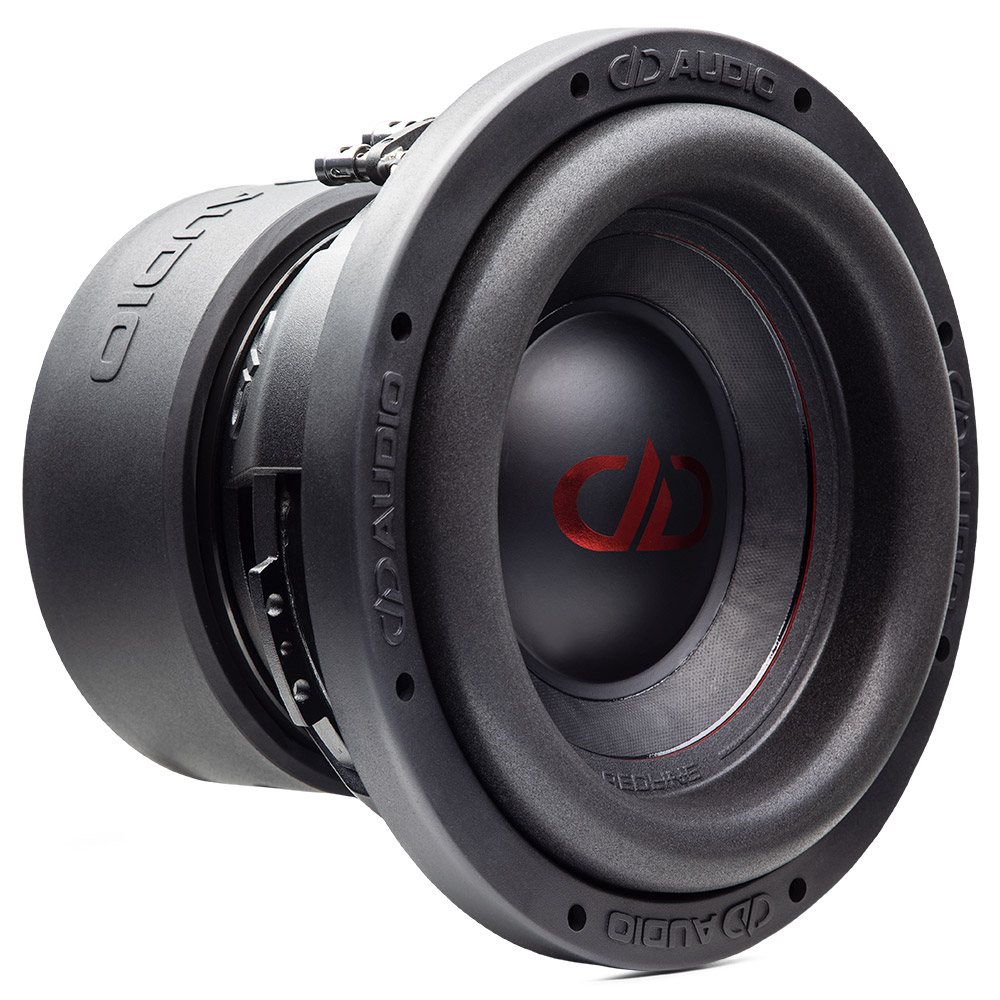

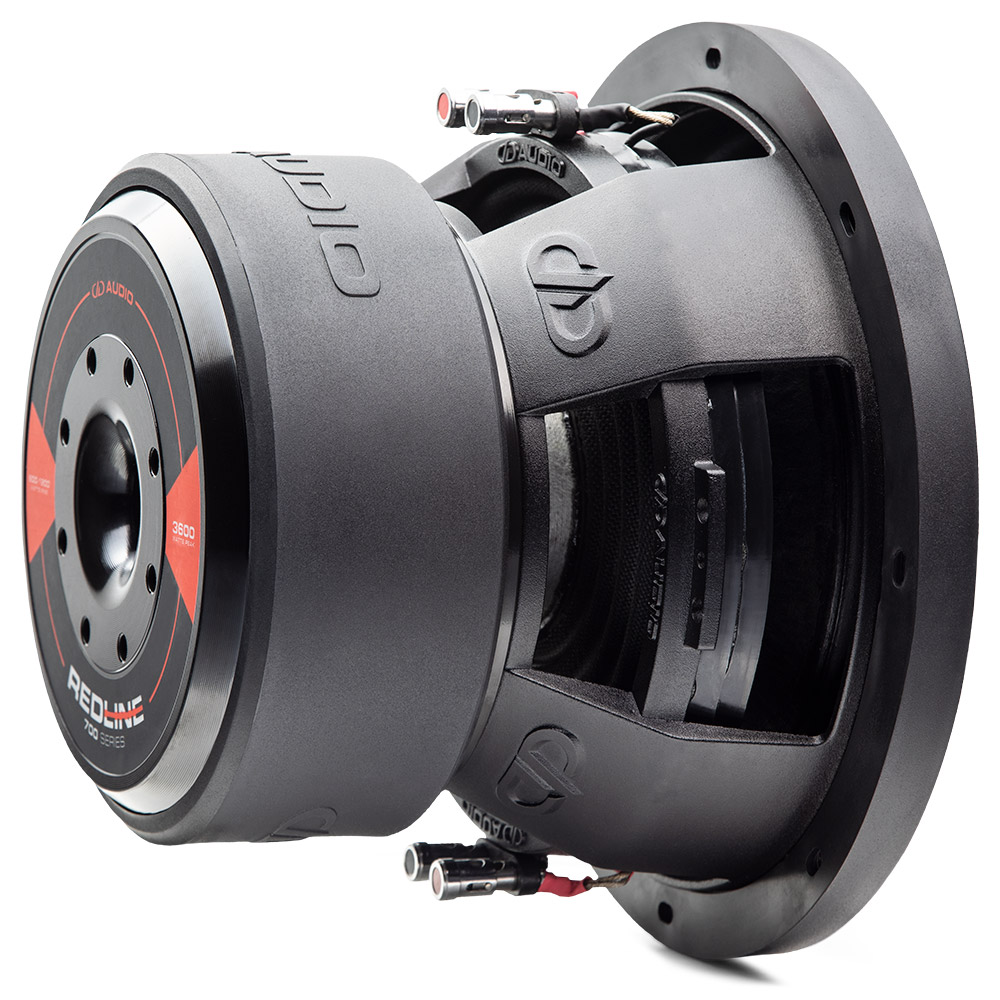

DD Audio 710d D4 10" bass

• 25 cm / 10" bass
• Power handling RMS: 600 til 1200 Watt (Peak Power 3600)
• Impedanse: 4 x 4 ohm
• Svingspole: 75 mm / 3"
• Slaglengde, Xmax. 14 mm (28mm peak to peak)
• x-mech: 80 mm
• Monteringsdybde 18,1 cm
• Anbefalt i portet kasse fra 35 til 42 liter
• Thiele-Small parameters:
• Fs 28.563 [Hz]
• Qts 0.321
• Vas 21.42 [liters]
• Heavy duty 10" to DD Audio Redline 700-series
• Redline lineup has now a 10" subwoofer with a heavy duty 3" voice coil. A subwoofer that handles a lots of power, plays loud and with good sound quality. Thanks to very low fs, it also plays LOW. Fs is 28.5 Hz !!! This subwoofer is a real sales magnet even by the looks, motor diameter is almost as big as installation diameter. Available with dual 2 ohm and dual 4 ohm coils.
• Highlight: Subwoofer that plays loud even the deepest notes. And in a much smaller space than a 12" one.
• EROM surround
• High-temp, 3.0”, voice coil
• Triple layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back plate coil gap venting
• Extended pole piece
• DD cast basket
