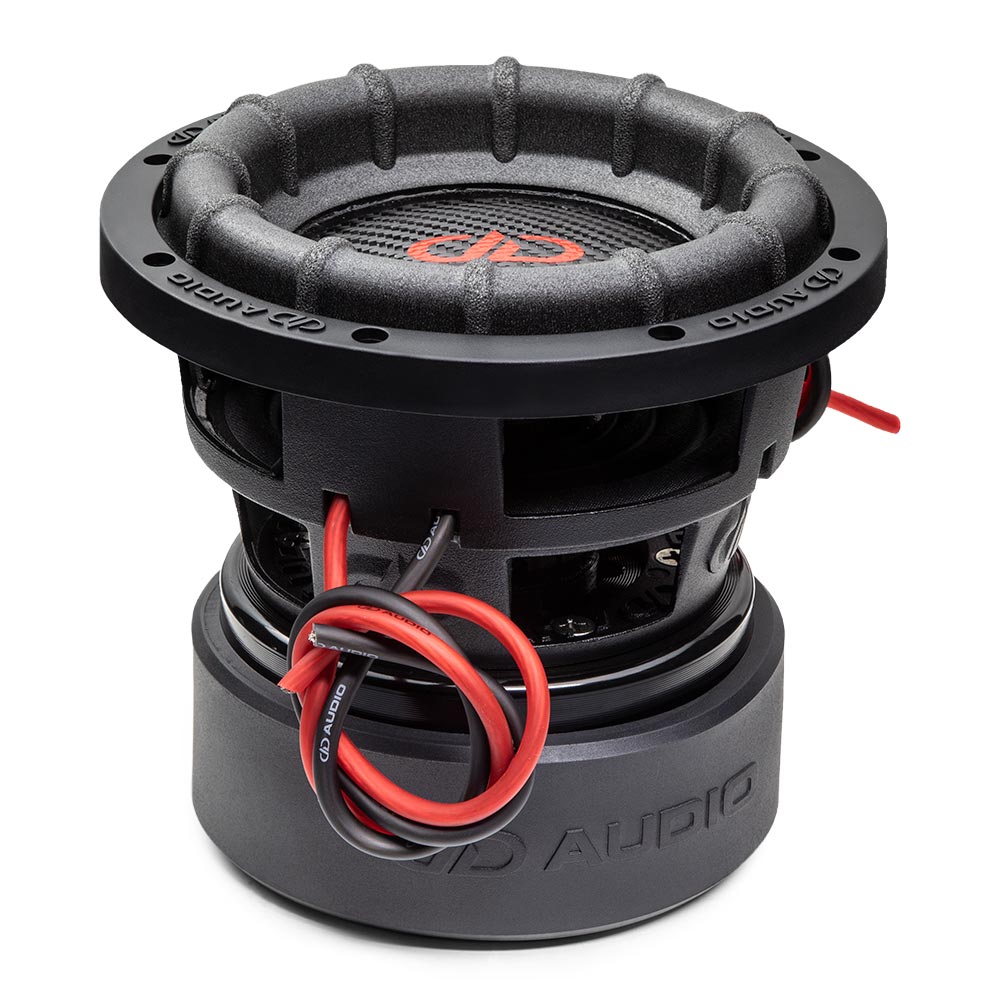

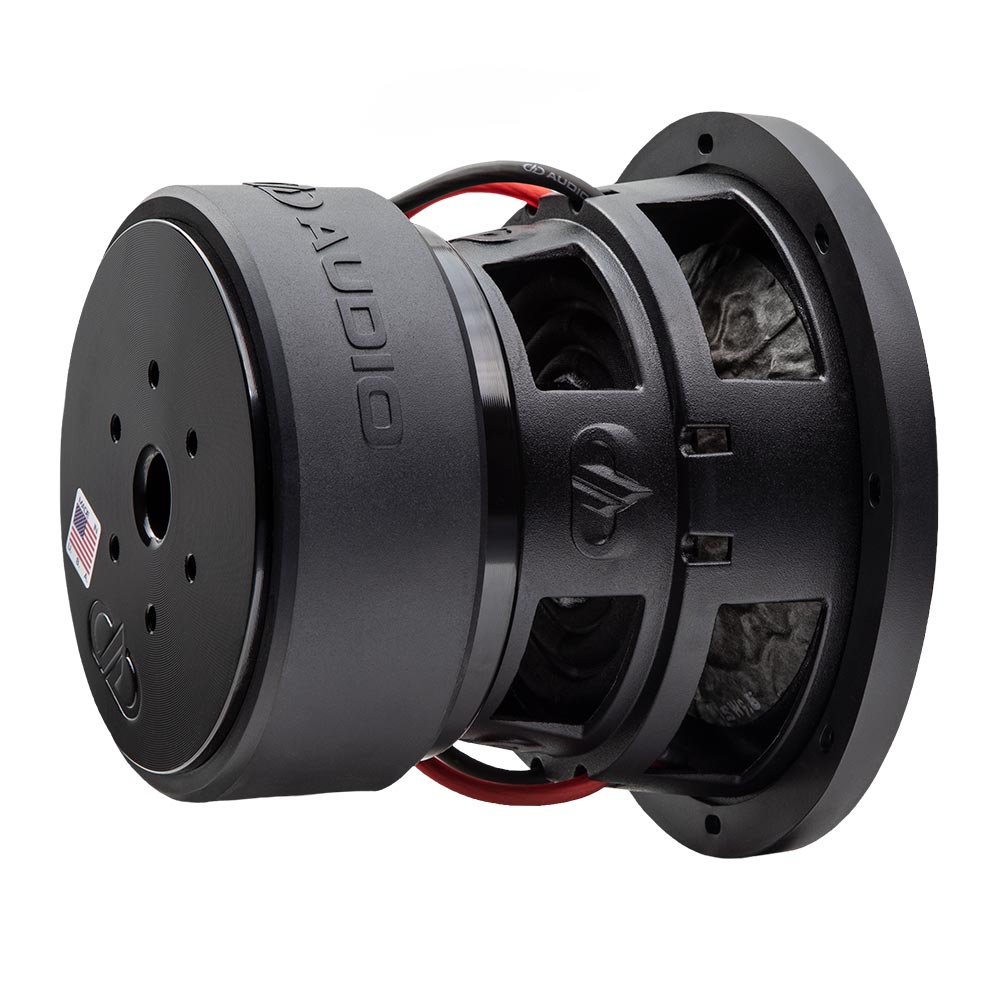

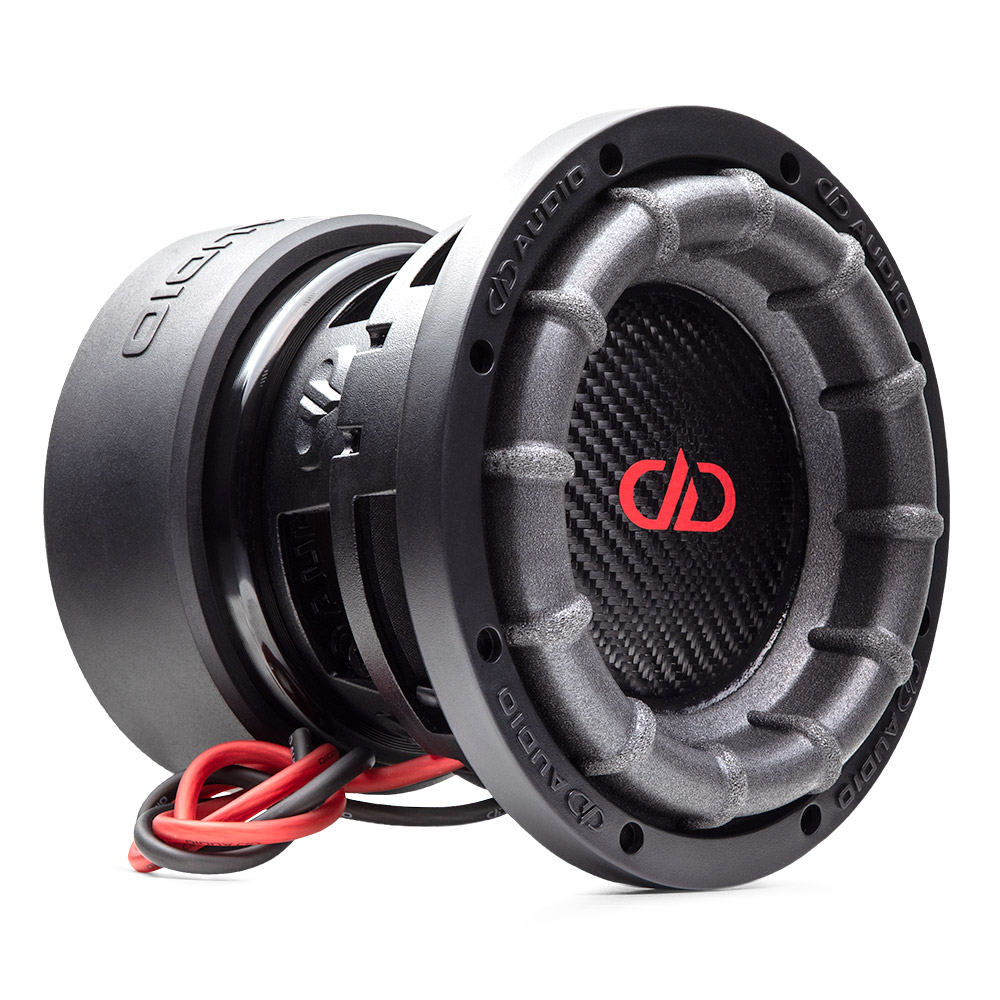

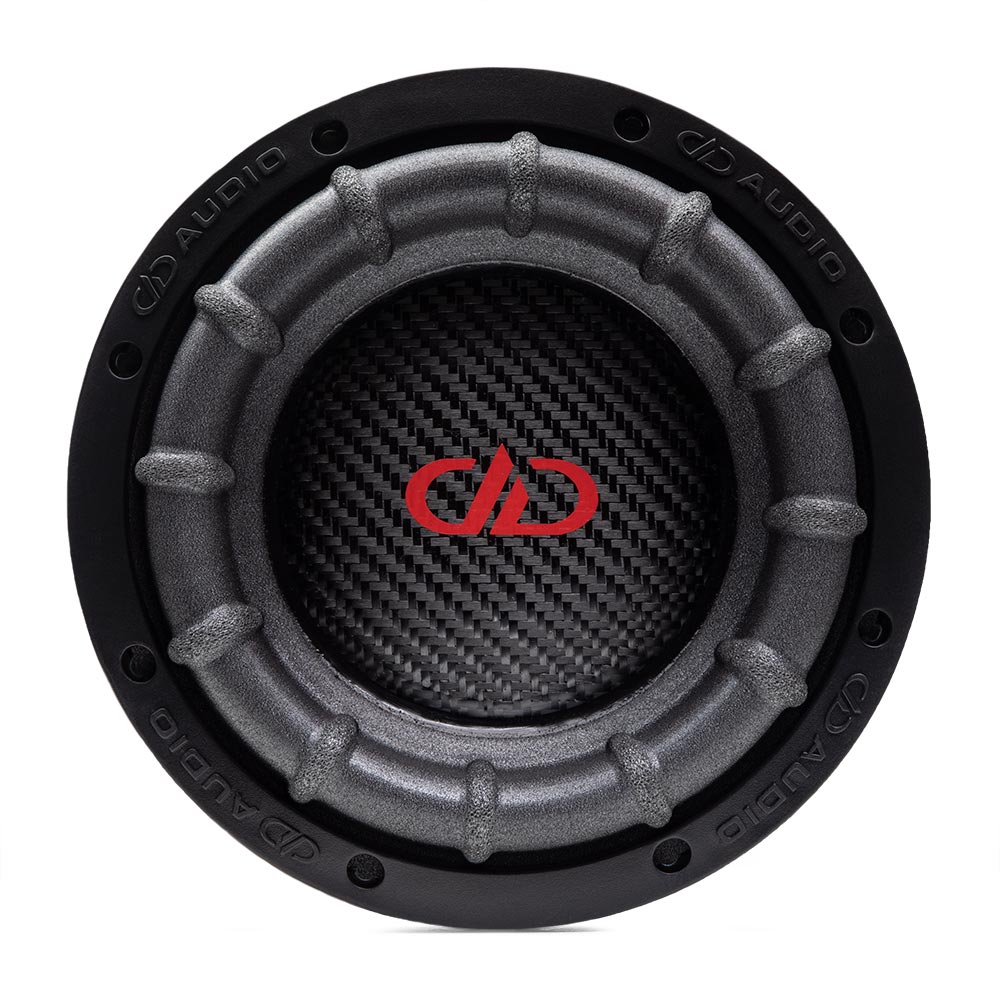

DD Audio 1506 D4 ESP

• 6,5" subwoofer
• 2.0" voice coil wound of Made in USA wire
• 2 x 4 ohms
• power handling 300-600 W RMS, 2400 W Peak
• mounting diameter: 160 mm
• mounting depth: 152 mm
• x-mech: 48 mm
• x-max: +- 10 mm
• fs: 47,78 Hz
• qts: 0,740
• vas: 2,398 liter
• recommended ported enclosure: 7-21 liter ( NET )
• It is with great excitement that we announce the immediate release of the brand new 1506 Power Tuned Subwoofer, our smallest addition to their growing arsenal of ESP equipped subwoofers. If you need big woofer bass, but have a limited build area, the Power Tuned 1506 ESP is your new best friend. At 6.5 inches, the 1506 is a perfect solution for small space applications such as under and behind seats or tucked away in consoles and other compartments.
• As with its bigger brothers, the 1506 ESP is designed to accommodate today’s high excursion listening styles with larger diameter suspensions and deeper frames compared to standard sub designs, as well as proprietary surrounds and cones to fully take advantage of the increased geometries. Additionally, the 1506 ESP features an optimized drive circuit with a 2" high-temp voice coil and a 20mm top plate, giving the 1506 the power handling and coil control to get loud and play clean. All ESP subs are built to truly maximize performance in their designated size classes thanks to features like:
• Carbon Fiber Blend Cone (CFB) – The CFB composition employs a potent carbon fiber based cocktail to give you the highest strength to weight ratio of any pulp cone in the industry.
• Vario-density Extended Range Of Motion Surround (V-ROM) – Provides the ultimate in linear control at high excursion while still allowing for dynamic sounding bass reproduction. The control ribs are compressed to a lesser density than the main surround body to allow for a continuously variable control system. The harder you drive it the more control you get.
• Tuned Spider System (TSS) – Each suspension is tuned for specific performance traits, e.g. High Definition, Power Handling, X-Stiff Control.
• Super Frame (SFrame) – Maximizes spider diameter, cone diameter, suspension excursion, works as a secondary shorting ring and provides additional heat sinking for better heat flow from the coil.
